XCMG Official Aerial Work Platform Gtbz58s 58m Used Self Propelled Telescopic Boom Lift Price

Product Description

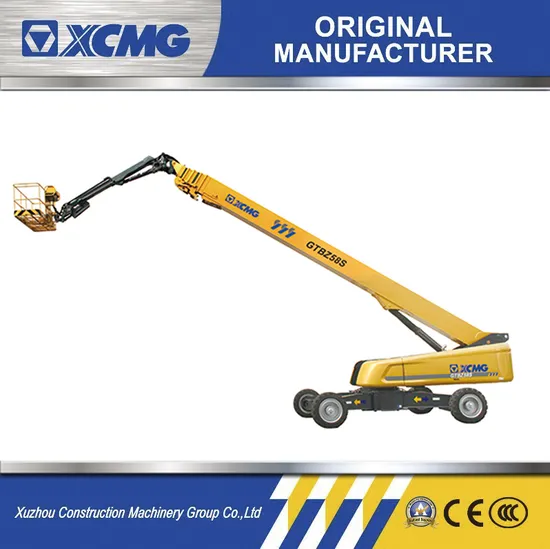

XCMG Official Aerial Work Platform GTBZ58S 58m Used Self Propelled Telescopic Boom Lift.
This machine developed independently by XCMG is the presently world's highest 58m-level product that covers nearly 85,000m2 operation space.
With maximum working height at 58.6m and maximum loading capacity at 450kg, its work platform allows the operator to carry more tools and materials to the aerial workplace.
The flexible telescoping boom can also span or access diversified application structures, including the steel structure, petrochemical engineering, and power generation, wind power plant, and energy related building, stadium, convention center, and theater.
Performance Characteristics:
1. X-shaped Swinging Legs And Full-wheel Steering
Four axles could swing independently, which features the advantages shown below: the overall width should be narrowed during transportation and storage; large wheelbase could be realized for low-altitude or slope traveling; wide span could be reached for superstructure boom, keeping the support steady. In addition, while the axles are swinging, the full wheels could auto- matically match their angles for straight traveling, with three steering modes coordinated with each other.
2. Proportional Dual Leveling
Dual leveling mode of telescopic crank and work platform, improving the product precision that could be controlled within 2.5 ° and hence promoting the aerial safety.
3. Precise And Steady Control
Customized proportional valves have the flow curve designed according to action features, ensuring the excellent micro
manipulation. The pressure com- pensation behind valve and the anti-saturation design of flow could make the composite movement more effective and steady.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
[Parameter]

Item	Unit	GTBZ58S
a. Overall length (Transport status)	m	19.45(14.6)
b. Overall width (With shaft retracted/extended)	m	2.49/5.03
c. Overall height	m	3.05
d. Wheelbase	m	5.22/4.59
Maximum working height	m	58.6
Maximum platform height	m	56.6
Maximum working range	m	25.1
Maximum carrying weight	kg	230 (Without limit)/450 (With limit)
Luffing range of boom	°	-1 ~ 80
Slewing angle of turntable	°	360°
Maximum rearward slewing	m	2.32
Dimension of platform	m	2.4×0.9
Slewing angle of platform	°	180
Overall weight	kg	27200
Maximum traveling speed	km/h	4.5
Minimum turning radius (With shaft retracted/extended)	m	9.5/6.6 (Four-wheel steering)
Minimum ground clearance	m	0.25
Maximum gradeability	%	45
Specification of tire	-	445/50D710 24-ply
Engine model	-	Deutz TCD3.6 L4
Engine rated power	kW/(r/min)	74.4/2300

---
