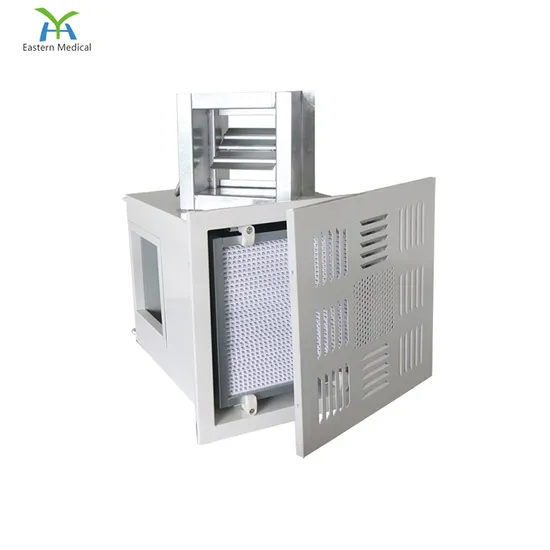

Cleanroom Panel High Efficiency Fiberglass HEPA Filter Air Filter Manufacturer

Product Description

WH High efficiency filter without partition
Performance characteristics
The filtration efficiency for particles ≥ 0.3 μ m is above 99.9995%
The computer-controlled fully automatic folding machine system is used for spray glue folding, and the folding height range can be infinitely adjusted between 22-96mm
Specialized ultra-fine glass fiber filter paper as filter material
Each filter undergoes strict testing
Adopting international standard size specifications
The F-type is a blade type used for sealing liquid tanks
Application
Mainly used in the electronics and pharmaceutical industries, clean rooms, laminar flow equipment, and other fields that require ultra-high cleanliness close
Common specifications

Model	External dimensions	Filter area	Air volume	Initial resistance (H13)	Initial resistance (H13)
WH/1 320*320	320*320*90	4.6	500	220Pa	250Pa
WH/1 484*484	484*484*90	13.72	1000
WH/1 630*630	630*630*90	17.86	1500
WH/1 968*484	968*484*90	21.1	2000
WH/1 1260*630	1260*630*90	35.72	3000
WH/2 320*320	320*320*80	3.99	450
WH/2 484*484	484*484*80	9.14	900
WH/2 630*630	630*630*80	15.4	1350
WH/2 968*484	968*484*80	18.2	1750
WH/2 1260*630	1260*630*80	30.9	2750
WH/3 320*320	320*320*70	3.38	430
WH/3 484*484	484*484*70	7.73	800
WH/3 630*630	630*630*70	13.1	1250
WH/3 968*484	968*484*70	15.46	1600

Kind reminder: Customization can be processed according to customer specifications and requirements

---
