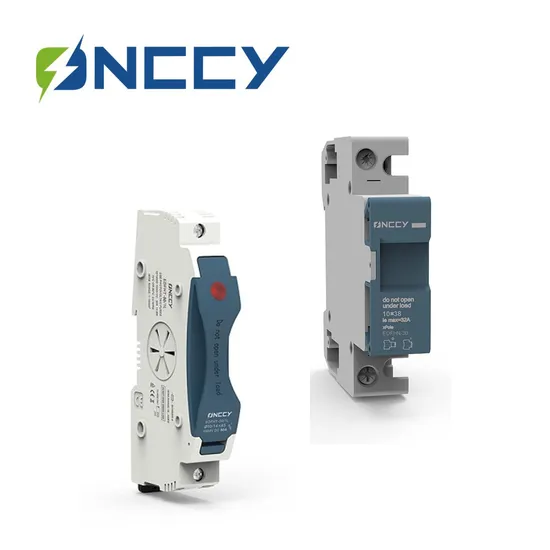

Solar PV DIN Rail DC1000V DC1500V 10X38mm 1p 2p 32A 10ka Fuse Holder

Product Description

Product Description
DC Fuse Holder For Solar Manufacturer The features of the PV Modular fuse holders 10×38 is 1000V DC & 1500V DC rated voltages.They have been developed to offer a compact, safety and economic protection solution in photovoltaic installations where due to the increase of the power and technologic evolution, no-load voltages above 1000V DC can be achieved. Modular fuse holders for 10×38 are according IEC/EN 60269 standard. Compact design, with reduced distances.

DC Fuse Holder 1000V10x38mm 1P 2P 32A 10kA Product Benefits
Din35 Rail Installation, Easy to Install Adjustable terminal block, Wiring firm Fire-retardant shell, high temperature resistance Flexible installation, Easy to replace 1000V 30A 1P 10*38mm fuse link Finger safe touch EDFH series fuse holder is made of refractory material, and meets the standard of iec60947-3. The maximum rated voltage is 1500V and the maximum current is 30A. As a short circuit and over-current protector, it is widely used in the high and low voltage distribution system, control system, and electrical equipments, like distribution box and inverter.
Din35 Rail Installation, Easy to Install Adjustable terminal block, Wiring firm Fire-retardant shell, high temperature resistance Flexible installation, Easy to replace Product Parameters
Technical Data

1P, 1P+N, 2P	230 VAC
3P, 3P+N	800 V AC
Rated operational current Ie	32 A
Conditional short-circuit current	10 kAr.m.s
Utilization category	AC 20 B
Rated impulse withstand voltage Uimp	4 kV
Fuse-links	10, 16, 20, 25 and 32 A
Operating class	gG(gL)/aM
Max. Power loss per current path	3.2 W

Mechanical
Frame size	45 mm
Device height	80 mm
Device width	acc. to dimensioned drawing
Weight	EAFH
1P	74G
1P+N	84G
2P	156G
3P	234G
3P+N	244G
Mounting	quick fastening on DIN rail IEC/EN 60715
Degree of protection (built-in)	IP20 (IP40)
Upper and lower terminals	lift terminals
Terminal capacity	1.5-10 mm2
Tightening torque of terminal screws	max. 1.2 N.m
Dimensions of fuse-link	10.3 x 38 mm

Detailed Photos
FAQ Q: Are you trading company or manufacturer ?
A: We are manufacturer. We have 30,000 square meters of self-owned plant.
Q: Do you have any certificates?
A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.
Q: How do we make a quick response to customer , 5 inquiry ?
A: Our professional team will reply you online or by email,Skype, whatsApp and so on.
Q: Do you have any exporting experience?Which countries did you export to before?
A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.
Q:Can you supply samples for checking ?
A: Yes, we can supply samples, pls contact for detailed required.
Q:How long is your delivery time?
A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.
Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.
Q:How about inspection?
A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?
A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.

---
