Complete Almond Processing Groundnut Paste Production Line Peanut Butter Making Machine

Product Description

Complete Almond Processing Groundnut Paste Production Line Peanut Butter Making MachineWe are professional manufacture of peanut processing machines.We can provide trun-key project for peanut like:peanut butter production line,salted peanut production line,chocolate peanut production line,frying peanut production line etc.
Application of butter processing machine:
(1) Various nuts: such as Peanuts, Sesame, Almonds, Cocoa, Cashew, Soya beans, Corn, Hazelnut , Pistachios, Macadamia nuts, etc.
(2) Vegetables and fruits: Chili, Garlic, Ginger, Onion, Tomato, Potato, Banana, Apples, etc.
Peanut sesame Almond Cashew Butter Processing Machine Flowchart:
The peanut sesame production process and main equipments of the production line include oven, peeling and semi-granular machine,sorting belt, feeder, coarse grinding machine, mixing tank, conveying pump, mixer, homogenizer, fine grinding machine, vacuum tank and cooling machine, filling machine, etc. It is characterized by flowing water, high degree of mechanization, good reliability,fully enclosed production and no pollution. It is an advanced equipment for producing stable peanut butter.
Roasting --- Cooling - Peeling -- Grinding -- Mixing -- Cooling --de-gassing -- Liquid filling machine
Details of peanut almond sesame butter grinding machine production line
Nuts Roasting machine: batch type and continuous type roaster's working temperature is 200-260 Cº within 20-30minutes. After roasting,the nuts will becomes good smell,and easier to get butter and oil out.
Nuts Cooling machine: Peanut will be send to automatic cooling belt to cool.

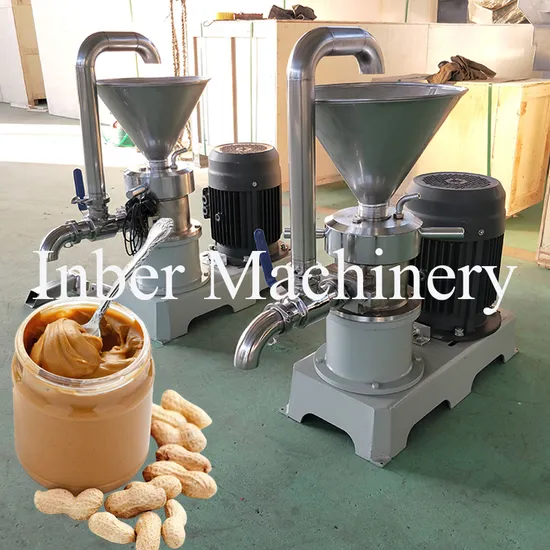

Peanut nuts butter Grinding machine:We adopt professional grinding machine for nuts, Using steel grinder to make the first grinding; Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7um; temperature of grinding is controlled below 68C.Which can makes a better quality of peanut butter.
Cooling Mixing tank: make the butter more homogeneous and the butter through second grinding should be cooled immediately. The temperature should go down 45C.
Buffer Tank: Short time storage and take out the air from peanut butter
Storage tank: settling down in the storage tank till the temperature drop to air temperature.
Butter Filling machine: Automatic filling machine, the finished peanut butter is packed into 200g/500g/1000g bott.
Speicifaction of peanut almond sesame butter grinding machine production line

No.	Name	Power(kw)	Size(mm)
1	Feeding Machine	0.55	700*700*800
2	Hoister	0.75	1000*500*2800
3	Electric Drum Roaster Machine	23.6	2900*1500*1650mm
4	Elevator	0.75	1000*500*2800
5	Continuous Cooling Machine	5	3200*800*2400
6	Peeling Machine	1.29	1100*700*1100
7	Selection Belt	0.75	5000*800*1000
8	Elevator	0.75	1000*500*2800
9	Storing and Feeding Machine	0.55	700*700*2200
10	Grinding Machine	7.5	750*450*1000
11	Storage tank		150L
12	Paste pump	2.2	1200*300*350
13	Mixing tank	2.2	200L
14	Vacuum tank	2.2	200L
15	Paste pump	2.2	1200*300*350
16	Control cabinet
17	Pipeline

Successful peanut butter project for reference:

---
