Vacuum Dissolver for Water-Based Paints

US$10,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HSD 50
Application
Liquid, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Food, Pharmaceutical
Certification
CE, ISO, Atex
Condition
New
Control System
Touch Screen Control
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Safety Features
Anti-Slip Feet, Emergency Stop Button, Safety Lock, Splash Guard
Speed Control
Dual Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
With Cooling System
Working
High Speed Mixer
Transport Package
Wooden Case
Specification
To order
Trademark
Hoosun
Origin
Shanghai, China
HS Code
847982
Production Capacity
3000pieces/Year

Product Description

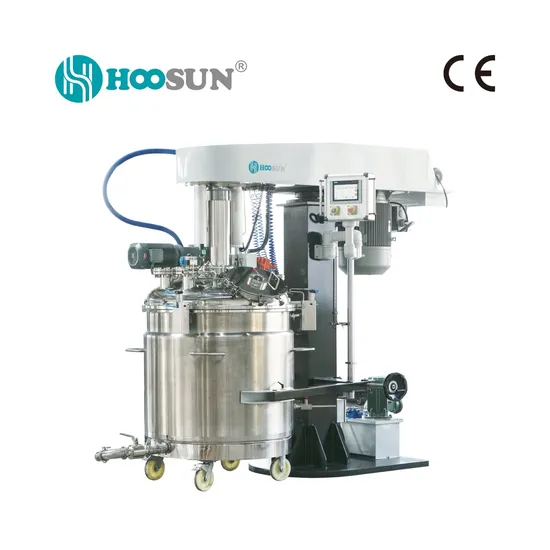

Product Overview: Introducing the Hoosun High Speed Dissolver, designed to deliver exceptional performance for mixing powders into liquids and achieving homogeneous dispersion of coatings, paints, inks, and pigments. This compact and powerful machine ensures efficient and precise processing for a wide range of industrial applications.
Key Features:
High Precision Mixing: Achieves fine grade mixing with a fineness range of 30nm to 5μm, ensuring consistent and high-quality output. Versatile Applications: Suitable for processing coatings, paints, inks, pigments, and viscous fluids, meeting diverse industry needs. Efficient Operation: Capable of handling 50-200 liters per batch, optimizing productivity and reducing processing time. Advanced Design: Vertical structure with a dual power system and Siemens screen for enhanced control and monitoring. Robust Construction: Made with solvent-resistant paint and adjustable tongs, ensuring durability and easy operation. User-Friendly: Simple and flexible operation, with features like low-speed wall scraping and vacuum stirring for efficient defoaming. Technical Specifications:
Model: HSD50 Mixer Type: Planetary Mixer Stirring Type: Spiral Operating Type: Cycle Operating Drive: Electric Operation Voltage: 380V/50Hz/3 phases Capacity: 200 - 1500 liters per batch Performance Advantages:
Efficient Centrifugal Separation: Utilizing a screen-free centrifugal separation principle, the dual power centrifugal nano bead mill ensures even distribution and efficient grinding of zirconium balls, achieving superior dispersion and depolymerization. High Fineness: Capable of grinding to a fineness of 50-150nm with zirconia bead diameters ranging from 0.03 to 0.6mm. Advanced Materials: Optional materials like tungsten carbide, polyurethane, zirconia, silicon carbide, and silicon nitride provide enhanced wear resistance and thermal conductivity. Broad Application Range: Ideal for processing nano new materials, MLCC, lithium batteries, silicon carbon cathode electrodes, alumina, ceramic ink, and more. After-Sales Service:
Installation on Site: Ensures correct setup and optimal performance. Lifetime Maintenance: Providing ongoing support to keep your equipment running smoothly. Warranty:
1 Year Elevate your production capabilities with the Hoosun High Speed Dissolver, the perfect solution for efficient and precise mixing and dispersion. Contact us today to learn more and place your order.
Technical Parameter
Model Chamber Rev. Motor Power Bead Dia. Bead Rate Batch Capacity
HSD1 1L 1200 - 2500rpm 3.7KW 0.2 - 2.0mm 80 - 85% 1-7L
HSD10 10L 1070 - 1500rpm 13.5/15KW 0.2 - 2.0mm 80 - 85% 50 - 250L
HSD25 25L 1070 - 1500rpm 18.5/22KW 0.2 - 2.0mm 80 - 85% 100 - 700L
HSD50 50L 1070 - 1500rpm 45KW 0.2 - 2.0mm 80 - 85% 200 - 1500L
HSD100 100L 900 - 1650rpm 55/75KW 0.2 - 2.0mm 80 - 85% <2500L
HSD150 150L 900 - 1650rpm 75KW 0.2 - 2.0mm 80 - 85% 500 - 3500L
HSD200 200L 900 - 1650rpm 75/90KW 0.2 - 2.0mm 80 - 85% 1000 - 5000L
HSD300 300L 900 - 1650rpm 90/110KW 0.2 - 2.0mm 80 - 85% >7500L
HSD600 600L 900 - 1650rpm 250KW 0.2 - 2.0mm 80 - 85% >10000L
HSD1200 1200L 900 - 1650rpm 355/450KW 0.2 - 2.0mm 80 - 85% >20000L
