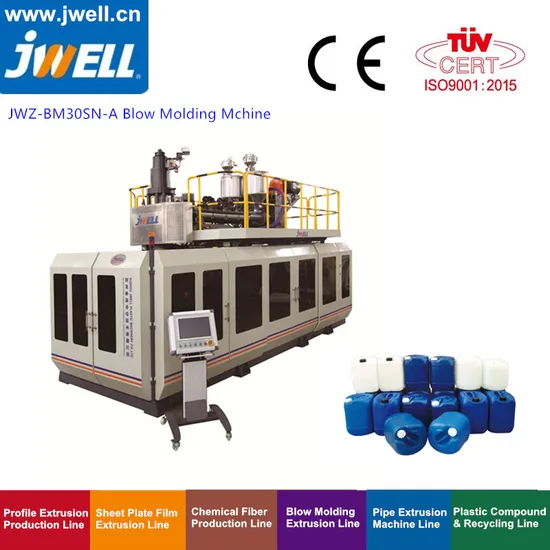

High Speed Blow Molding Machine for The Product of All Kinds of Blowing Molding Products From 10 to 30L/Made in China

Product Description

Performance and advantages It's suitable for the product of all kinds of blowing molding products from 10 to 30L,
the using of accumulate type head, under blowing structure, the second air-cooling unit,
automatic online deflashing, online weighing of products, leakage testing, transportation.
It can reduce labor costs and increase production efficiency.
Technical parameters

Model	Unit	JWZ-BM 30SN-A
Max product volume	L	30
Dry cycle	pc/h	240
Number of working station		Single
Parison mould structure	Accumulate type Die head
Screw diameter	MM	65*2
Screw L/D ratio		30
Capacity	Kg/h	220
Driving motor	KW	30KW*2
Number of barrel heating zone	Zone	4*2
Heating power of main barrel	KW	13.2*2
Oil pump motor power	KW	22
Clamping force	KN	280
Max space between platens	MM	350-880
Platen size W*H	MM	600*640
Heating number of diehead	Zone	5
Heating power of diehead	KW	24
Max die pin diameter	MM	260
Overall dimension L*W*H	M	7.0*3.7*4.2
Total weight	ton	18
Total power	KW	140

Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.
Control system

rts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

1.Control system

SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
2.Extrution & Die head
The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
3.Blowpin system
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
4.Output system
5.Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Hydraulic system adopts Servo motor-oil pump control technology, Servo controller, SUMITOMO low-noise gear pump, it has the features of quick response and energy saving. This controller can save more than 50% energy than common ones.
6.Open&Closing system
7.Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
8.Electric system
SIEMENS CPU unit SIEMENS temperature-control unit SIEMENS digital-output unit SIEMENS analog-output unit MITSUBISHI CPU unit JWELL invertor revolving speed-control Schneider electric components

---
