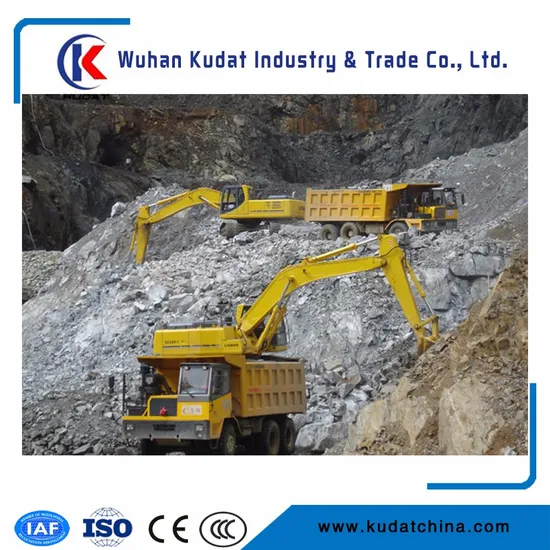

SC360-7 excavator features higher performance, higher efficiency, super power and larger bucket capacity. The engine power is the largest for the same kind of excavator, and the excavator features higher reliability, lower fuel consumption and more environmental care. The firm working device ensures strongest digging capability. With the striking plate, the service life of the arm is prolonged. The equipped large capacity rock bucket features improved structure strength, and higher endurance. The advanced and reliable hydraulic control system can bring the power of the engine and main pump into full play. The system features the functions of auto idling, power increasing and self diagnose. The excavator features safe, comfortable and relax operation environment, excellent visibility and low nose. The front window of full visibility ensures excellent visibility for all directions. Equipped with auto air conditioner, the cab provides excellent operation environment for the operator.
| Item | Unit | Reference value |
| Engine |
| Model | Cummins 6CTA8.3 |
| Battery | V,Ah | 24,120×2 |
| Alternator | A | 24V 70 |
| Rated output power | Kw/rpm | 192/2000 |
| Piston displacement | L | 8.3 |
| Cylinder (bore×stroke) | mm | 6-φ114×135 |
| Type | 4 strokes, water cooling, inline, direct injection, turbo charged |
| Working device |
| Boom length | mm | 6470 |
| Hydraulic breaker | | Option |
| Bucket | m3 | Rock type |
| Arm length | mm | 3185 |
| Travel part |
| Carrying wheel | | 2 in each side |
| Track board | | 45 in each side |
| Supporting wheel | | 7 in each side |
| Hydraulic system/ control valve (Kawasaki) |
| Type | | KMX15R |
| Hydraulic system/ control valve (Kawasaki) |
| Control method | | Hydraulic pilot type |
| Slewing motor (Kawasaki) | | Axial piston type (with safety vale and parking brake)×1 |
| Travel motor (KYB) | | Axial piston type (with brake vale and parking brake)×2 |
| Hydraulic system/ hydraulic pump (Kawasaki) |
| Type | | variable displacement pump |
| Set pressure | MPa(kg/cm2) | 34.3(350) |
| Flow | L/min | 265×2+30 |
| Hydraulic system/ hydraulic cylinder(KYB) |
| Cylinder type | | Cylinder bore (mm)×piston rod diameter (mm) |
| Bucket cylinder | | φ140×φ100 |
| Arm cylinder | | φ170×φ120 |
| Boom cylinder | | φ140×φ100 |
| | | |
