Kwh Meter 1 Dts-18L Three Phase Four Wire DIN Rail

Product Description

DTS-18L Three Phase Four Wire DIN Rail Energy Meter
DTS-18L Information
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
TAINIHAN & LEDUN have a complete range of DIN-mounted electricity meters for different applications, the meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21.
DTS-18L Specifications

1	Type	DTS-18L LCD Display
2	Accuracy	Class 1
3	Rated Voltage (Un)	3 X 110V/220V/230V/240V/380V/400V
4	Base Current (lb)	5A, 10A,15A,20A,30A or other
5	Max Current (Imax)	20A, 40A, 60A, 80A or other
6	Frequency (Hz)	50Hz Or 60Hz (±5%)
7	Starting Current (mA)	0.4% Ib
8	Power Consumption of Current	≤2W 10VA Per Phase
9	IP Class	IP51
10	AC Voltage Withstand	2KV for 1 Minute
11	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
12	Operating Temperature	-20ºC To +55ºC
13	Storing Temperature	-40ºC To +70ºC
14	Operating Humidity	≤75%
15	Storing Humidity	≤95%

DTS-18L Function in Display and monitoring
Active Energy: Kwh 6+2
DTS-18L Dimensions
DTS-18L Diagram

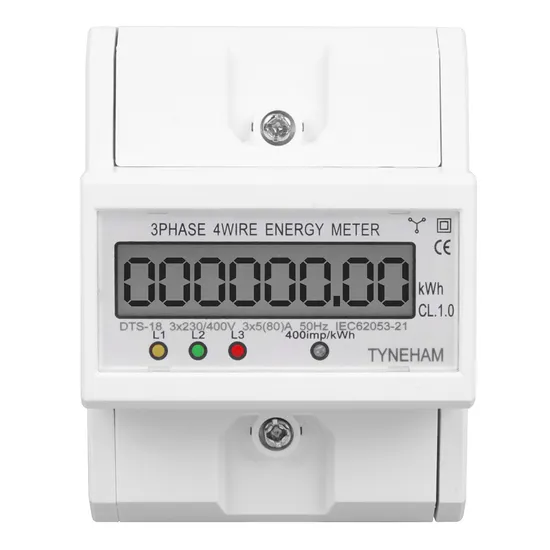

DTS-18L Front Side Photo
DTS-18L Left Side Photo
DTS-18L Back Side Photo
DTS-18L Right Side Photo
DTS-18L Top Side Photo
DTS-18L Bottom Side Photo
ABOUT TAINIHAN
Yueqing Tainihan Electrical Technology CO.,Ltd is located in Xiangyang industrial zone, liushi town,Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.
The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Tainihan keeps perfecting existing products and developing new product lines. We have developed a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. Our products has attained CE certification with superior quality are popular in the global market.
Our company posses high accuracy special device, advance technology, laborious workmanship and various styles. We also have rights for import and export, our products are widely sold well to southeast Asia, Middle East, South America and other areas.
We believe that our company will be more powerful and far better by your support!
TAINIHAN WORK SHOP
TAINIHAN TESTBENCH ROOM
TAINIHAN AGING ROOM

---
