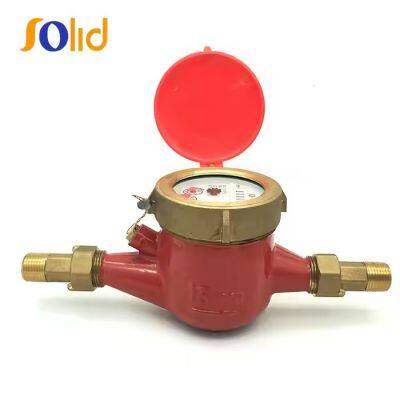

Ductile Iron Vane Wheel Multi-Jet Dry Dial Magnetic Type Hot Water Meter

Product Description

Product Description
Specification:

Item	Standard
Operating condition	PN: 1.0/1.6 Mpa (10/16bar)
The water temperature	cold water up to 50℃ and hot water up to 90℃
Standard	ISO 4064 Class B
Material	Brass, Cast iron, Plastic
Size	DN15 - DN50
Pressure loss	ΔP63

Application:
To totalize the total volume of water passing through the pipeline.
Features: Large measuring range; high flow accuracy; Steady error curve; Long life of service; Reliable operation; Magnetic shield protection; Negligible head loss at working flow-rates; Vacuum sealed register without any condensation problem. Upon request, the meter can be equipped with pulse output device.
Error curve: From qt inclusive up to and including qs is ±2%; From qmin inclusive up to but excluding qt is ±5%.
Packing:
Carton + pallet.

---
