Manual Type Press Plate Polishing/Grinding Machine

Product Description

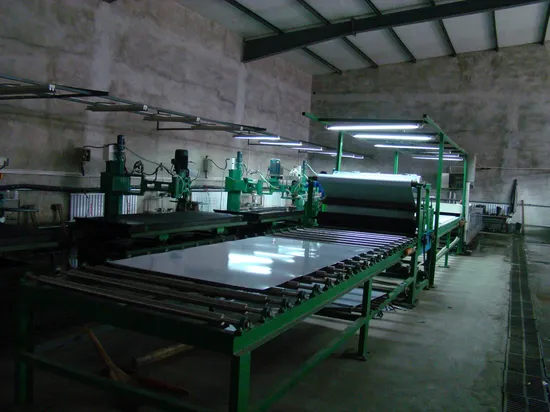

One Head Mirror 8K Polishing/Grinding Machine

This Polishing/Grinding Machine is mainly used for the repairing Polishing/Grinding of 8K Mirror Sheets. After Repairing Grinding with this Machine, The Quality can reach Super 8k Effect.

This Machine can also be used for the polishing/Grinding of Press plates.


Main Parameter:
Max Height of the Arm: 250MM
Min Diameter of the Working Area of the Arm: 500MM
Max Diameter of the Working Area of the Arm: 2,000 MM
Power of the Main Motor: 4KW
Worktable Area: 1500MM * 3000MM
Material of Worktable: Rubber-covered Steel.

Consumables
The Consumables are abrasives:

One Set--- One set can polish about 20 --25 sheets (4 * 8 Sheets)

No.	Products	Type	Price (USD)	Remarks
1	Resin Polishing wheel	240#	92
2	Resin Polishing wheel	400#	100
3	Resin Polishing wheel	800#	105
4	Resin Polishing wheel	1500#	120
5	Special Polishing Wheel		36
6	Sponge Gasket		13
7	Polishing Liquid		5

Application:

The reflectivity of Super Mirror creates light and space and is easily fabricate, it has reflectivity of Glass Mirror, but unlike Glass Mirror, It will not cause the so-called Light Pollution, That is why it is widely used in Modern Society.

Typical Application of Mirror Polished sheet is: elevator, escalator, interior cladding, building facades, Medical & Chemical purpose etc.
Mirror Polished Sheets or plated can be further treated with Etching, PVD or other processes.

---
