US$2,200.00-5,000.00
|
1 Set
(MOQ)
|
Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Z3032X10
Drilling Dia.32mm
Transport Package
WOOD CASE
Specification
CE, ISO9001
Production Capacity
200SETS/MONTH
Product Description

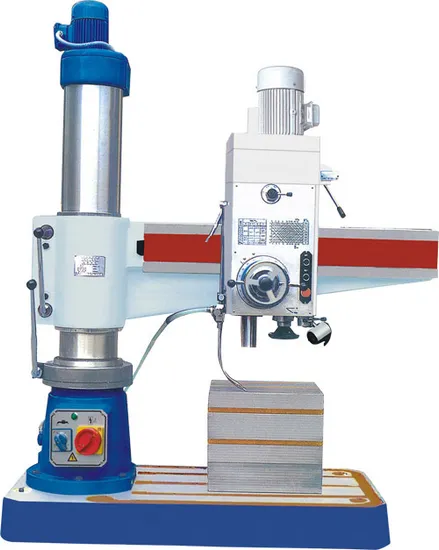

Radial Drilling Machine Z3032X10
1. The Radial Drilling Machine, It's construction designed elaborately, with pefect appearance and convenlent maintenance.
2. The headstock radial arm and colummns are clamped by manual clamping mechanisms.
3. It has feature of wide speed and feed range, compact operation key, reliable and enough rigidy.
4. The machine has a sample rigidity and power in drilling, counter boring, spot facing reaming, tapping, even boring when equiped with a special device. It is widely used in every department of machining medium and small sizes workpieces.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead Chuck
* Tapping chuck
* Grease gun
| Model CODE NO. | Z3032X10 |
| Max.Drilling capacity (mm) | 32 |
| Distance spindle axis to column generating line (mm) | 200-1000 |
| Diameter of column (mm) | 240 |
| Spindle taper | MT4 |
| Spindle travel (mm) | 250 |
| Spindle speeds range (r/min) | 71-1800 |
| Spindle speeds series | 8 |
| Range of Spindle feeds (r/min) | 0.13-0.54 |
| Mpindle Spindle feeds | 4 |
| Max.Distance spindle nose to working surface of base (mm) | 264-1064 |
| Dimension of worktable (mm) | 400×450×400 |
| Dimension of base (mm) | 1500×740×160 |
| Overall Size (mm) | 1730×750×2350 |
| Power of Main motor (kW) | 2.2 |
| G.W/N.W (kg) | 1700/1400 |
| Packing dimension (cm) | 187×97×217 |
>>
