Mingju Ve-10il CNC Machining Center

Product Description

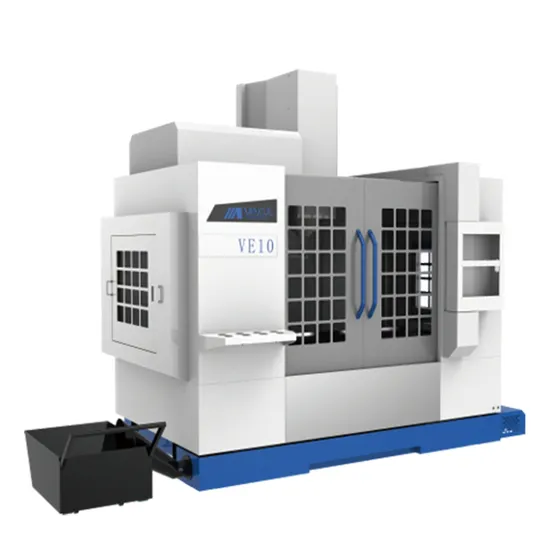

MINGJU VE10iL Universal Vertical Machining Center
Product Parameters

Item	Specification	Unit	VE10iL
Processing Range	X/Y/Z Axis	mm	1100/600/700
	Distance from Spindle End Fave to Table	mm	120-820
	Distance from Spindle Center to Column Guide Surface	mm	650
Table	Table Size	mm	600x1200
	Max. Worktable Load	kg	800
	T-Slot	mm/mm/mm	5-18-110
Spindle	Drive Type	-	Direct Drive/Electro-Spindle
	Spindle Speed	rpm	12K/15K/20K
	Spindle Motor Powe	kw	11-15/20-30
	Spindle Taper	type	BT40
Servo Axis	Rapid movement for X, Y, and Z axis	m/min	36/36/30
	The cutting feed rate	mm/min	1-10000
Tool Magazine	Tool Magazine Type	-	Arm-Type Tool Magazine
	Tool Holder Specification	type	BT-40
	Tool Capacity	tools	24
	Maximum Tool Diameter	mm	φ80
	Maximum Tool Diameter (No Adjacent Tool)	mm	φ150
	Maximum Tool Length	mm	300
	Maximum Tool Weight	Kg	8
	Tool Change Time (Tool-to-Tool)	Sec	3.5
Main Accuracy	Positioning Accuracy	mm	±0.005
	Repeat Accuracy	mm	±0.003
Others	Machine Weight (Including Water Tank)	ton	6.9
	Length/Width/Height (Including Water Tank)	mm	3000x2500x2900
	Air Supply Pressure	kg/cm2	6~8

Product Description
Bed, Column And Saddle
The bed, column, and saddle are composed of Meehanite HT300 grade cast iron, which includes very high dampening characteristics. The one piece bed casting and column are stress relieved to ensure machine geometry is maintained throughout the life. Wide spacing of the linear guideways ensures optimal support for the table and saddle in full travel of each axis. Heavily ribbed castings provide superior dampening for high speed machining and aggressive milling. The mating surfaces of all critical contact points including the column, linear bearing blocks, linear guideways, and table surfaces are fully ground to optimize fit and accuracy.
Guide ways
The X, Y, & Z-axis are standard with heavy-duty 45mm linear guideways. All the guideways are placed against ground shoulders to maximize rigidity and geometry.
Spindle
The permanently greased spindle bearings require no maintenance. The 8,000 rpm spindle is driven by a (7.5/11kW) AC servo motor. 15,000 rpm spindle is an option,upgrade toVE10IL. The four 70mm ceramic spindle bearings help with the concern of thermal growth on the 15,000 rpm spindle.
Ball Screws And Axis Drives
Each axis is driven using a high precision, fully ground ball screw. All the ball screws are supported on using angular contact thrust bearings and are perfectly centered between the linear guideways. The 40mm ball screws are driven directly using direct-coupled AC servo type drive motors eliminating vibration, noise, and backlash.
Fully Enclosed Machine Enclosure
The machine enclosure is made of heavy duty sheet metal to contain the chips and coolant. The entire machine is fully enclosed. The removable side doors allow direct access to the inside of the machine. The front door opening (40") allows for easily loading and unloading of work pieces.
Flood Coolant System
A dedicated flood pump provides high volume coolant to the machine tool. The coolant enters the head casting and exits through the bottom of the spindle to help control thermal growth. The mounted nozzles are fully adjustable to accommodate various tool lengths. The 200 L coolant tank provides adequate capacity for any application.
Lubrication
Automatic lubrication is provided to the linear guideways and ball screws via way oil. Oil is delivered by metered valves, which precisely control the volume. A low-level alarm on the CNC warns the user preventing possible damage to the guideways and ball screws.
