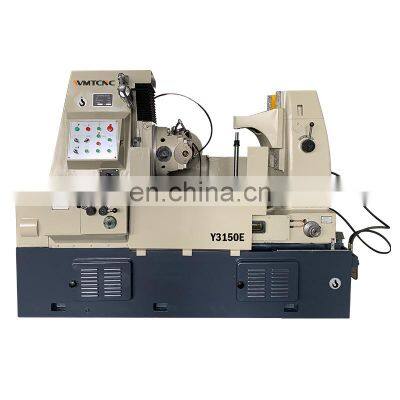

Y3150E Good Price Standard Precision Hobbing Machine For Sale

Product Description

Product Description
Properties and pecularities1. For standard precision hobbing machine, we take regulation from “GB8064-87” to test our machines cefore delivered from factory. Under normal conditions, the precision come up to “GB10095-88” 7th degree precision according to2. This machine applies to bulk or small batch of hobbing process against roller gear or worm wheel3. According to buyer's requirement, there is tangential advancing multi-heads worm wheel avaible for optionNameY3150EMax. diameter of workpiece550mmMax. processing module8mmMax. processing width250mmMin. number of teeth processed6Max. vertical travel of tool seat300mmMax. returning angle of tool seat240°Distance from axis of hob to operating platform235-535mmTaper of principal spindleMT5Allowed for install hobMax.diameter 160mmMin. length 160mmMax. axis movement of hobbing cutter-Dia. of hob mandrelφ22、φ27、φ32mmDistance from axis of hob to axis of operating platform30-330mmSwift movement distance of operating platform hydraulic unit50mmHole diameter of operating platform80mmHole taper of spindle seat of workpieceMT5Dia. of operating platform520mmPrincipal spindle REV and range of REV9step 40-250r/minSwift movement speed of tool seat≤540mm/minSwift movement speed of operating platform≤500mm/minDistance from operating platform surface to cutter racket bearing end surface400-600mmAxis feeding volume steps and range of feeding volume12step 0.4-4mm/rPrincipal motor power and synchronous rev4kw 1500r/minPower of axis swift motor and synchronous rev1.1kw 1500r/minPower of swift motor of operating platform and synchronous rev0.55kw 1500r/minPower of hydraulic pump and synchronous rev1.1kw 1000r/minApproximate mass of machine4500kgOuter size of machine(L×W×H）2440×1370×1800mm
