Product Details
Product Description
Product Description

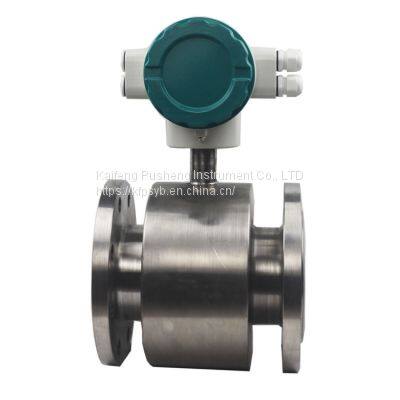

Electromagnetic flowmeter is a flowmeter which measures the flow rate according to Faraday's law of electromagnetic induction. The advantages of electromagnetic flowmeter are minimal pressure loss and large range of measured flow. The ratio of maximum flow and minimum flow is generally more than 20:1, the applicable industrial pipe diameter range is wide, up to 3m, the output signal and measured flow is linear, high accuracy, can measure the conductivity ≥5μs/cm of acid, alkali, salt solution, water, sewage, corrosive liquid and mud, pulp, pulp and other fluid flow. But it cannot measure the flow of gas, steam or pure water
The measuring range of electromagnetic flowmeter is large, usually 20:1 ~ 50:1, and the optional flow range is wide. The diameter range of electromagnetic flowmeter is wider than other varieties of flow meters, from a few millimeters to 3 meters; The positive and negative two-way flow can be measured, as well as the pulsation flow, as long as the pulsation frequency is much lower than the excitation frequency; Meter output is linear in nature; Easy to choose and fluid contact material variety, can be applied to corrosive fluids and other advantages. Because the electromagnetic flowmeter has more chances to measure suspended solids or dirt than other flow meters, the failure probability of inner wall adhesion layer is relatively high. If the conductivity of the attached layer is similar to that of the liquid, the instrument can also output signals normally, but change the flow area, and form a recessive fault of measurement error; If there is a high conductivity layer, the electromotive force between electrodes will be short-circuited. If an insulating layer is attached, the electrode surface is insulated and the measuring circuit is disconnected. The latter two phenomena can cause the instrument to fail to work.
PuSheng instrument co., LTD., mainly producing all kinds of rotor meter, the level of spiral meter, vertical spiral water meter, water meter, prepaid intelligent water meter, IC card intelligent water meter, bluetooth intelligent water meter, nb intelligent water meter intelligent water meter and valve control meter, such as photoelectric read-only meter, ultrasonic heat meter, ultrasonic water meter, electromagnetic flowmeter, the throttle device, the vortex street flowmeter, Turbine flowmeter, and related software and hardware development, the company has intelligent circuit board and software research and development capabilities, through the ISO9000 certification system is a collection of research and development, production, sales, after-sales service, technical training as one of the high-tech production and development enterprises.
With decades of experience in the production and service of water meters, electricity meters and other meters and calibration devices, we have the best quality control experts and scientific research and production team in China. Company measurement experts get the measurers through certificate issued by the state in 1982, the quality control experts in 1968 (the original 983 factory), now known as artisans power of the luoyang bearing factory equipment factory work, presided over many products to participate in the national competition for weighing apparatus in China the national front row, computer industry core expert team with 20 years of experience, double card master, And scientific research institutes, universities, as well as a number of master's doctor cooperation to set up a RESEARCH and development service team, with various aspects of the system of research and development and production capacity, flow meter by decades of experience in the flow meter technical experts carefully built supervision. We service clients with unit of former five machine department, Beijing, Shanghai, ningbo and other places, shanxi, shandong, hebei, etc all kinds of users throughout the country, dozens of tap water company, we have training of luoyang, zhengzhou city tap water company check personnel, we have decades of instrument technical service and technical support capabilities.
>>
