Siemens China Beide Series 3 Phase Low Voltage Aluminum IEC Electric Motor

US$50.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
1TL0301 IMB3
Number of Stator
Three-Phase
Species
Ie3
Rotor Structure
Squirrel-Cage
Casing Protection
Protection Type
Number of Poles
2-8
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, CE
Brand
Beide
Frame Size
80-355
Efficiency Class
Ie3 (IEC 60034-2)
Material
Cast Iron
Color
Stone Grey
Transport Package
Standard Export Package
Specification
IEC standard
Trademark
BEIDE
Origin
China
HS Code
8501520000
Production Capacity
4500sets Per Month

Packaging & Delivery

Package Size
45.00cm * 66.00cm * 59.00cm
Package Gross Weight
115.000kg

Product Description

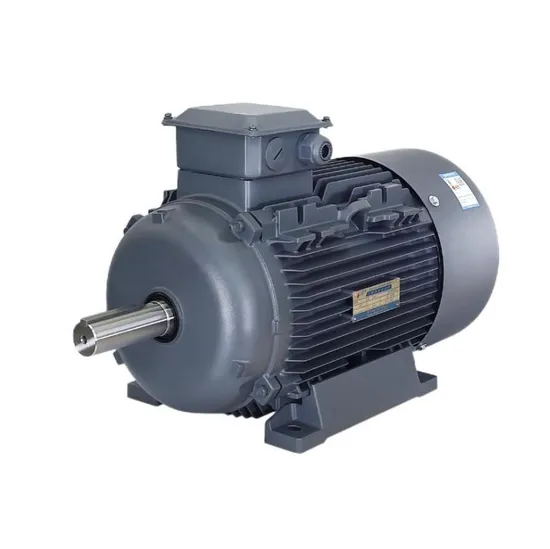

SIEMENS Beide series 3 phase asynchronous electric /electrical motors
Motor Summary
Frame size 80- 355
Pole 2 ~ 6
Rated voltage 380V
Frequency 50Hz
Power 0.75kw ~ 315Kw
Protection degree IP54
Cooling method IC411
Insulation class F
Ambient Temperature -15°C~40°C
Altitude up to 1000m over sea
Working Duty S1(Continuous)

Product Description
Products certification:
Application fields:
SEIMENS Beide motors are suitable for pumps, fans, compressors, texitle machine and mechanical machine applications where variable or constant speed is required.
Company ability:
Warehouse
products inspection befor delivery
Stocks
office area
FAQ
Q: What is the different between SIEMENS Beide series and SIEMENS Simotics GP series?
A: Both motors are made by the SIEMENS (China) Ltd. SIEMENS Simotics GP series apply Europe design and SIEMENS Beide adopt the China GB design standard. Technical parameters are different. Q: What is your MOQ of this item?
A: 1PCS.
For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment, L/C , paypal .ect.

Q: What's the leed time?
A: standard product 20 days after receiving your L/C or T/T deposit.
Q: Can we used our own brand on motors ?
A: Sorry, not possible.
Q: How long is your warranty?
A: 12 months after receiving B/L.
