2000*600mm 620ah High Percision Automatic Processing High Speed up and Down Hydraumatic Auto Feed Surface Grinder Grinding Machine

Product Description

Product Description
Our High Precision Handwheel Feed Surface Grinder is meticulously designed with state-of-the-art components to deliver unparalleled performance. Key features include a robust frame, high-accuracy handwheel feed system, and a user-friendly interface for effortless operation.

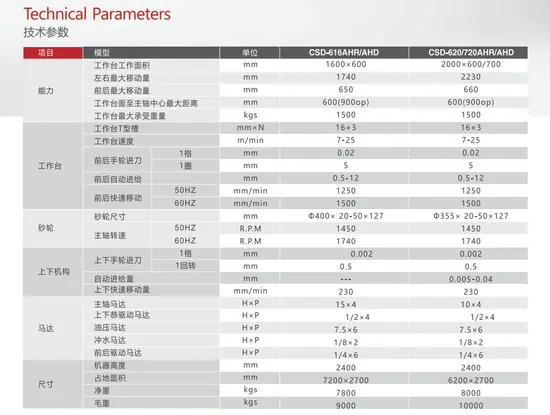

Product Parameters

Mountings	Specifications		Unit	CSD-616AHR/AHD		CSD-620/720AHR/AHD
Ability	Table Dimensions		mm	1600×600		2000×600/700
	Maximum forward and backward movement		mm	1740		2230
	Maximum left-right movement		mm	650		660
	Distance between spindle center and work surface		mm	600(900op)		600(900op)
	Maximum bearing weight of working table		kgs	1500		1500
Work Table	Table T-slots		mm×N	16×3		16×3
	Table speed		m/min	7-25		7-25
	Front and rear handwheel feed	a check	mm	0.02		0.02
		a round	mm	5		5
	Auto-supplying from front to back		mm	0.5-12		0.5-12
	High speed moving from frong toback	50HZ	m/min	1250		1250
		60HZ	m/min	1500		1500
Grinding Wheel	Grinding Wheel Size		mm	Φ400×20-50×127		Φ400×20-50×127
	Speed of mainshaft	50HZ	R.P.M	1450		1450
		60HZ	R.P.M	1740		1740
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.002		0.002
		a turing round	mm	0.5		0.5
	Auto-supplying volumn		mm	---		0.005-0.04
	High-speed mouing dimension from up to down		mm/min	230		230
Motor	Spindle motor		H×P	15×4		10×4
	Drive motor up and down		H×P	1/2×4		1/2×4
	Drive motor up and down		H×P	7.5×6		7.5×6
	Vacuum motor		H×P	1/8×2		1/8×2
	Back and front driving motor		H×P	1/4×6		1/4×6
Machine Size	Mechanical height		mm	2400		2400
	Occupied area		mm	7200×2700		6200×2700
	Net weight		kgs	7800		8000
	Gross Weight		kgs	9000		10000

Products Details: The High Precision Handwheel Feed Surface Grinder from Dongguan TranStar Machinery Co., Ltd. boasts a range of sophisticated features, such as an ultra-precise handwheel mechanism, durable construction, and advanced grinding capabilities. Ideal for various industrial applications, this machine guarantees superior surface finishes and enhanced productivity.
