Dual-Spectrum Speed Dome Tripwire/Intrusion Detection 4MP Visible Light Camera

Product Description

Product Description

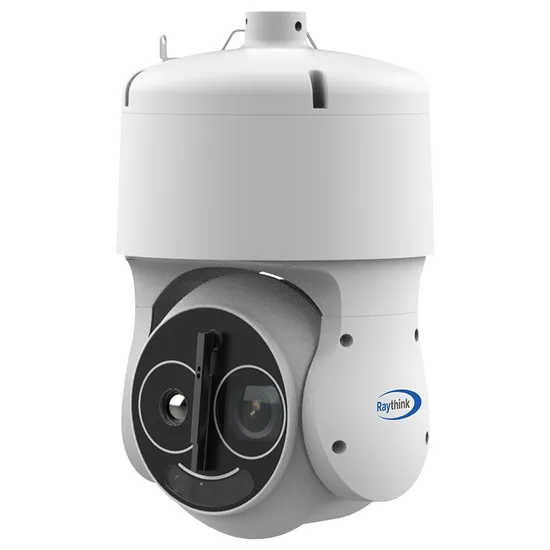

PD4T dual-spectrum speed dome camera equipped a 640×512 resolution, 12 μm pixel pitch thermal detector with motorized lens, and a high-performance 4MP visible light camera. It supports tripwire/intrusion detection with AI human/vehicle classification algorithm. The target can be tracked with the help of PT system. It can be used for perimeter protection in critical facilities. Product Highlights
• 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
• Dual-Spectrum ImagingAll-weather, 24/7 security monitoring with dual thermal&visible light imaging
• Accurate Temperature MeasurementMeasurement range from -20ºC to 550ºC, accuracy ±2ºC or 2%.
• Platform IntegrationSupport ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
• AI Target RecognitionSmart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.
• Long-Range ObservationSupports a 50mm motorized lens for detecting fire points up to 3km away and individuals up to 1km away. Specifications

Technical Specifications	PD464T
Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C,F#1.0,25Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	9.1mm	13mm	25mm	50mm
Optical Module
Sensor	4MP 1/2.8" Progressive Scan CMOS
Resolution	2560×1440
Focal Length	6.5-240mm
IR Distance	200m
PTZ
Pan	360° continuous, 0.1°~120°/s
Tilt	-27°~+90°, 0.1°~120°/s
Preset	1024
Scan Mode	Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan
Temperature Measurement
Measurement Range	-20ºC~+550ºC
Measurement Accuracy	±2ºC or ±2%
Measurement Rules	Support 4 temperature measurement rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Support Line Crossing&Intrusion detection with AI human/Vehicle recognition
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 24V±15%
Network	1×RJ45 10M/100M self-adaptive interface
Audio Interface	1×input, 1×output
Alarm Interface	7×input, 2×output
Storage Interface	Micro SD card (up to 256G)
RS485 Interface	1×RS485
General
Work Environment	-40ºC~+70ºC;<95%RH
Protection	IP66
Power Consumption	Max.≤48W
Dimensions (mm)	Φ250×413
Weight	8kg

Application Scenarios
Forest Fire Prevention Perimeter Protection River Monitoring Electric Temperature Measurement Company Information
FAQ
Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, CNAS certification reliability test platform.Q2:How long is your delivery time?A: For smal order,it usually takes 7 working days. For OEM order, please check the shipping time with usQ3: What's the MOQ?A: MOQ is depend on the product.Q4: What's your payment terms?A: Our payment terms is L/C, T/T, D/P, Western Union, Paypal and Money Gram.Q5: What's the product warranty policy?A: Thermal vision products purchased from our company come with a 2-year warranty, while our thermal modules are covered by a 1-year warranty.Q6: How about aftersale support?A: We provide lifetime Technical Support, our engineer will respond your technical support within 24 hours.

---
