High Speed Top Bottom Cotton Canvas Corrugated Conveyor Belt with Reinforced Kevlar Reinforced Edge Woven Aramid Material for Cardboard Machine

Product Description

Product Description LEIZHAN belt is suitable for corrugated board production lines and specially developed for double-sided machines. The four functions of the conveyor are smooth cardboard transport, straight line operation, uniform distribution of pressure in the system pressure to ensure the best hot plate, and cardboard drying. Specially developed for transporting paperboard and optimizing the drying process, corrugated strips can sustain pressure resistance and extend service life as much as possible. The patented braided structure ensures the correct bonding and quick drying of the board. The use of high-quality PET fibers allows the belt to quickly remove moisture absorption during the drying process.

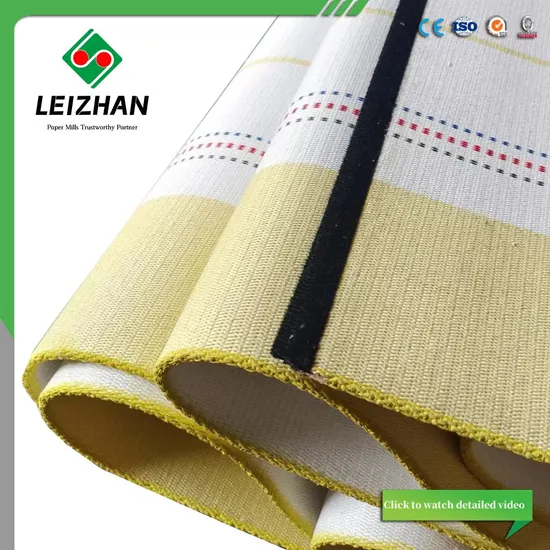

Detailed Photos
Product Parameters

Description	High speed fast track belt	High speed Moisture Absorption Belt	High speed Silencing Belt	Towing and Palletizing Belt	Honeycomb Cardboard Conveyor Belt
Raw material	100% synthetic fiber	100% synthetic fiber	100% synthetic fiber	100% synthetic fiber	100% synthetic fiber
Thickness	8.5-9mm±0.3mm	9mm±0.3mm	9-10mm±0.3mm	5.5mm±0.2mm	6-8mm±0.2mm
Width	2200mm-3000mm	1600mm-2800mm	1400mm-2600mm	100mm-2500mm	1200mm-2500mm
Temperature Tolerance	160ºC200ºC254ºC	160ºC200ºC254ºC	160ºC200ºC254ºC	160ºC200ºC254ºC	160ºC200ºC254ºC
Unit weight	7.3±0.3kg/m2	7.2±0.3kg/m2	7.5±0.3kg/m2	4.3±0.2kg/m2	4.5-7.0±0.2kg/m2
Air permeability	2.26m3/m2.min	2.1m3/m2.min	1.95m3/m2.min	1.82m3/m2.min	1.57m3/m2.min
Coefficient of friction	≥0.43μ	≥0.43μ	≥0.42μ	≥0.38μ	≥0.38μ
Minimum Turning Radius	R70	R70	R70	R20	R20-R50
Speed of conveyor applicable	300m/min	240m/min	200m/min		150m/min
Notes: a) Temperature for long-time operation b) temperature for instantaneous operation c) Melting point
