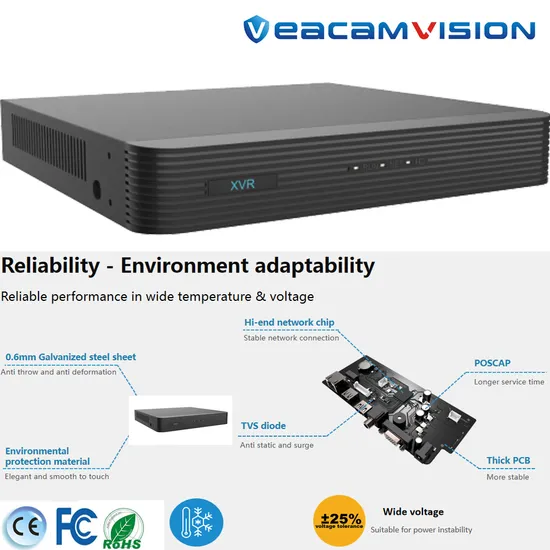

8CH Hybrid Xvr CCTV DVR Recorder for Ahd Tvi Cvi IP Cameras CCTV Security

Product Description

Product Description
8CH Hybrid Xvr CCTV DVR Recorder for Ahd Tvi Cvi IP Cameras Introducing the 8CH Hybrid Xvr CCTV DVR Recorder Upgrade your security system with the 8CH Hybrid Xvr CCTV DVR Recorder from Veacam Electronics Co., Ltd. This advanced recorder is designed to support a wide range of cameras, including Ahd, Tvi, Cvi, CVBS, and IP cameras, providing you with flexible options for your surveillance needs.
Key Features:
Supports H.265 and H.264 video formats for high-quality recordings
Enables audio over coaxial cable, allowing you to capture audio along with video
Adaptive access for TVI, AHD, CVI, CVBS, and IP cameras
8-channel BNC input for easy camera connectivity
1-ch HDMI output and 1-ch VGA output at up to 1920*1080 resolution for clear monitoring
Long transmission distance over coaxial cable, ensuring reliable signal transmission With the 8CH Hybrid Xvr CCTV DVR Recorder, you can enjoy the benefits of a high-definition surveillance system. The support for H.265 and H.264 video formats ensures that your recordings are of the highest quality, capturing every detail with clarity. The audio over coaxial cable feature allows you to not only see but also hear what's happening, providing you with a more comprehensive surveillance experience.
Thanks to its adaptive access, this recorder is compatible with a variety of camera types, including TVI, AHD, CVI, CVBS, and IP cameras. This versatility allows you to mix and match cameras based on your specific needs, giving you the flexibility to create a customized surveillance system.
The 8-channel BNC input makes it easy to connect multiple cameras, while the HDMI and VGA outputs ensure that you can monitor your footage on high-resolution displays. Whether you're using a TV or a computer monitor, you'll be able to view your recordings in stunning detail.
Additionally, the long transmission distance over coaxial cable ensures that your signal remains strong even over extended distances. This means you can set up your cameras in various locations without worrying about signal loss, providing you with greater flexibility in camera placement.
Upgrade your security system with the 8CH Hybrid Xvr CCTV DVR Recorder from Veacam Electronics Co., Ltd. Enjoy high-quality recordings, audio capture, and flexible camera compatibility. Invest in this advanced recorder and enhance your surveillance capabilities today!
Product Parameters

Model	VCXVR-808UA1S
Video/Audio Input
Analog Video Input	4-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 4K
Supported Analog Camera Types	Support AHD input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@30fps(channel1) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Two-way Audio	1-ch, RCA
Network
Incoming Bandwidth	48Mbps
Outgoing Bandwidth	60Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output	1-ch, BNC
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Synchronous Playback	4-ch
Encoding
Recording Resolution	8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording Frame Rate	Main stream: 8MP Lite@8fps(channel1) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max)
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Serial Interface	1 x RS485
General
Power Supply	12V DC Power Consumption: ≤ 8 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
Weight ( without HDD )	≤1.1 Kg ( 4.19lb )
