Full-Automatic Box-Drawing Facial Tissue Machine 2 Lines (CIL-FT-20A)

Product Description

Product Description

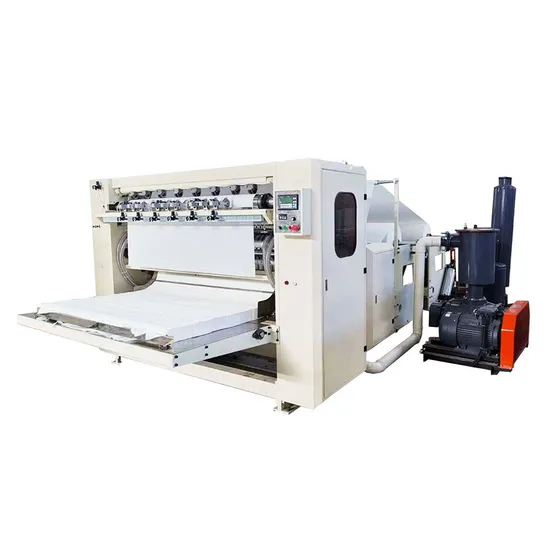

Full-Automatic Box-Drawing Facial Tissue Machine 2 Lines (CIL-FT-20A)
This model is designed to produce "link type" box-drawing facial tissue, that's mean, each sheet link together, draw the top tissue , the head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers' selection. It has a feature of tight structure, easy operation, stable operation and elaborate designed. This machine can equip with single color printing or double color printing unit.
General Specification:
1.1 Equipped with steel to rubber embossing roller, pneumatically separating.
1.2 Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed adjustment.
1.3 Equipped with vacuum pump for stable running of the machine.
1.4 Pneumatic dot slitting to make various products width.
1.5 Jumbo roll guiding system available.
1.6 The machine will stop when the paper broken
1.7 two jog buttons to thread the papers
1.8 Key parts regularly lubricating automatically.

Model	CIL-FT-20A
Speed	600-1000sheets per min per line
Capacity	2~10 lines
Product Size	200x200mm (unfolding);100x200mm(folding) ,(Other size ,please point out)
Power	5.5~30kw ,380V 50/60HZ
Overall Size	6.8x2.5x1.9m
Weight	2.0-4.0T

Detailed Photos
Our Company
Certifications
We Care:1. Machine Quality
Machine Quality Is Good Or Not, Which Is Not Only Affect The Finished Product Directly, But Also Affect Your Output And Sale.
We, Xinda Machinery, Always Focus On Quality And Are Specialized In This Field For 20 More Years. All Our Machines Are Passed CE Certificates. Choose Xinda Machines, They Can Reduce Your Production Problems.
2. Your Cost
Facial Tissue Paper Is A Product Of Large Consumption And Low Value, But Investing Machines For Making Tissue Paper Is High.
To Take Care Of Your Budget And Cost, Xinda Machinery Recommends Different Series Machine With Different Price Range For Different Markets. Here Will Have What You Want.
Your Customized Order Is Warmly Welcomed. We Will Do Best To Meet Your Needs And Price, Of Course, Is Reasonable.
3. Our Service
1). After The Machine Arrived At Customer's Plant, If Customer Requests, We Send Our Engineer To Customer's Factory To Install And Test Machine, And Offer Trainings To Customer's Technician About 5~15 Days.
2). Lifelong Consult On Quality And Operation Problems.
3). 12 Months Under Normal Use After Machine Arrived At Customer's Plant.
4). Delivery On Time And Loading Machine Well Before Shipping.
FAQ
Q: Why buy machine from Quanzhou Xinda Machinery Co,Ltd?A: 1. Good quality of machine with reasonable price.2. Good service: Any question from customer will be reply within 24 hours. For all the machines we sell, we will offer one-fiveyears guarantee for free and all life maintenance.3. We will also send you a DVD for free. It will contribute a lots to the operation of the machine4. After the machines arrive, the sellers shall send technician to install the production line(depends on you request)Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 90 days if the goods are not in stock, it is according toquantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:Send your Inquiry Details in the Below for More information & Video & Specifics of Machine, Click " Send " Now!!

---
