Pasta Production Machine Pasta Making Machine Pasta Production Line Long-Cut Pasta Line Short Cut Macaroni Pasta Line Spaghetti Noodle Making Machine

Product Description

Commercial Pasta production machine pasta making machine Pasta production line long-cut pasta line short cut pasta line Brief introduction of macaroni production machine
Complex automation system equipped pasta production line main purpose is provide high quality product with low investment price. Using latest and newest technology, we can build-up or redesign your facility's manufacture ability to reach high quality product. Our full automatic and semi automatic long-cut pasta production lines produced for whole day and various type of production capacity in an hour like 200kg/h 300 kg/h, 500 kg/h, 750 kg/h, 1000 kg/h, 1500 kg/h.in different shape.such as
Spaghetti Pasta,Penne,Fusilli,Shell pasta etc.
The technology developed by LOYAL allows to manufacture good quality dry pasta with every kind of flours. The percentage of protein presence is fundamental to the quality of the pasta as it gives strength to its texture.

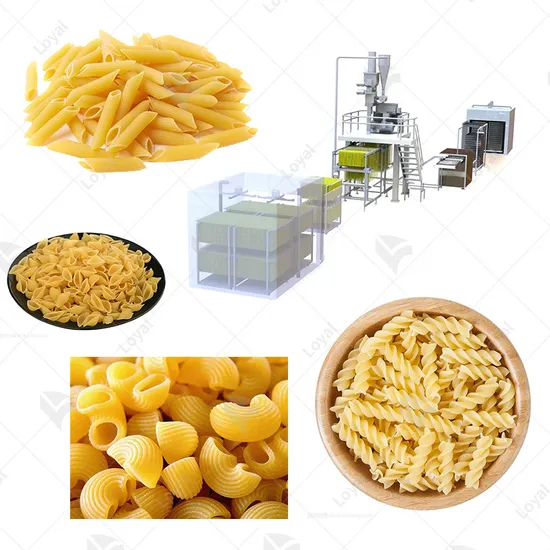

Finished product by loyal Pasta production line:
Process flow of Pasta production line:
Mixing machine → screw conveyor → extruder → cutting machine → dryer → cooling machine → packaging machine
1. Mixer: Mix the raw material powder with water and stir it evenly. It is made of stainless steel and does not leak during the mixing process. The effect of high-speed mixer is better than low-speed mixer.
2. Conveyor: Convey the mixed material in the stainless steel drum to the extruder feeder. No dust, no pollution, no leakage during the conveying process.
3. Extruder: Extrusion of the raw materials is a very critical step. The continuous vacuum extrusion technology is adopted. The frequency converter controls the speed of the main motor, cutter motor and feeding motor.
4. Cutting machine: mainly for cutting the surface, and the cutting speed can be adjusted.
5. Dryer: It is used for baking and drying products, and the drying method can choose the heating method of gas, steam, and diesel. The running speed of the mesh belt can be controlled by a frequency converter, or electric heating, with an automatic temperature control system.
6. Cooling machine: cool the dried food, lower the temperature of the macaroni, and make the product easy to pack.
7. Packaging machine: final packaging of the finished product, weighing the product, automatically printing the date and sealing.
Machine Parameters of Pasta production machine pasta making machine pasta production line long-cut pasta line short cut macaroni pasta line Spaghetti Noodle Making Machine

Model Parameter	LY 3000-A
Voltage:	380 V/50Hz,3 phase
Instant Power:	Electrical heating:150kw	Gas heating: 64.8kw
Actual power consumption:	Electrical:109.43 kw	Gas heating: 41.78kw
Capacity:	150--200 kg/h
Diameter:	23000 X 1500 X 2600 mm
Worker:	Macarini: 1-2

Finished Macaroni
There are many fancy varieties of macaroni, which can be divided into the following 5 categories in terms of product shape.
1,Long macaroni are available in four types: hollow tubular, solid bar, ribbon and oval, which are extruded through various moulds.
2,Short macaroni There are also hollow and solid, generally within 25mm in length, such as curved tube-shaped dragon intestine surface, conch shell surface, etc. There are also flaky hanging flower surface, letter surface, and granular barley surface, etc. There are many varieties of colours, which are also extruded through various moulds.
3,Nest-shaped products are generally flat and round and spherical.
4,Flake products are extruded into thin slices and have a shape, such as disc-shaped noodles.
5,Special products such as "artificial rice" and other granular products.
Pasta production Machine details display
Benefits of macaroni production machine
(1) The macaroni production line has reasonable design, high degree of automation and precise control of extrusion parameters.
(2) The main engine is equipped with high and low pressure screws, which increases the use range of raw materials, reduces costs and improves product quality.
(3) The screw is made of alloy steel and special technology, the screw life is longer, and the modular system structure is adopted, which can be combined at will. To
(4) The visualized automatic temperature control system makes the temperature control more intuitive, which is convenient for observation during operation and is clear at a glance.
(5) The whole machine is made of stainless steel, beautiful and atmospheric, and has a long service life. There are no pollutants or three wastes during the processing. The final product is high-quality and healthy, with excellent taste and rich nutrition.
About LOYAL
LOYAL is a machinery manufacturer with many years of production experience. The company brings together a team of experts and core R&D teams with decades of experience in this field. We have won with advanced technology, strict management, excellent quality and perfect service. good reputation.
Our products include single/twin screw extruded snack machinery, breakfast cereal and corn flake machinery, fish feed machinery, pet food machinery, macaroni making machine, fried food machinery, etc. We can provide individual equipment or complete factory layouts and lines, which are customized to meet customer requirements.
Through close cooperation with many scientific research institutes and universities, as well as continuous exchanges and cooperation with world-renowned companies in the same industry, we have established a strong technical force and a complete technical support system. Our products are well sold at home and abroad, and are widely supported and trusted by customers.
Our services
(1) All machines have been fully assembled and thoroughly tested and inspected before shipment.
(2) During the warranty period, we provide free maintenance for the main spare parts in accordance with the warranty agreement.
(3) We provide pre-sales technical consulting services, technical maintenance training and operation training services.
(4) Provide you with professional advice on the market, equipment, technology, materials, packaging, etc.
(5) We provide technical maintenance and repairs for third-party software and hardware products according to the warranty level of the third-party manufacturer.
(6) Assist you to select equipment, design process flow, improve workshop layout, if necessary, we can provide services in your factory.
Packaging and transportation of macaroni pasta production line
Each machine is packaged with very careful and tough materials. It is first packaged with plastic wrap, then with a film bag, and finally, packaged with a wooden box, and the top and bottom are reinforced with iron bars. In this way, all our machines can be well protected during long-distance travel by sea or train, and we can transport the machines by boat or train, according to your requirements.
The macaroni production line has the advantages of reasonable design, compact structure, simple operation, superior performance, and high degree of automation. It can bring good economic benefits and is very suitable for use in small and medium-sized processing plants.
If you have a need in this area, don't hesitate to contact us as soon as possible. Our staff will solve any problems you want to know at any time. Your satisfaction is our pursuit. You can also visit our factory. We look forward to working with you very much.

---
