Plastic Road Safety Barrier Security Fence Water Injection Fence Anti-Collision Bucket Road Cone Isolation Pier Blow Molding Making Machine

Product Description

Product Description

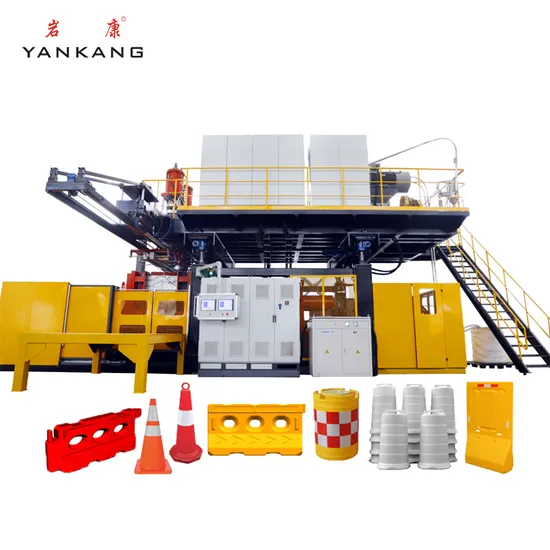

Plastic Road Barrier Road Safety Blow Molding Machine

Road barrier blow molding machine used to produce different size road barrier, because the standard of every country is different, so the YanKang company can use private customized methods according to customers's different design requirements.

Main Features 1)Full set of original SEIMENS control system to ensure the high-quality,safe and stable operation ,with international service after sale at same time
2)Using the American MOOG wall thickness controller to ensure the wall thickness more uniform and precise
3)The customers can choose the die head design from one layer to six layers for the road barrier blow molding machine
4)We can design the molds according to size of road barrier at same time,and then design the clamping platen unit ,the extruder system,hydraulic system and so on.

Road Barrier Blow Molding Machine
	Specifications	Single Layer
Extruders	Screw Diameter	110mm
	Motor	55kw
	Plasticizing Capacity	350 kg/h
	L/D	L/D 32:1
	Max Screw Speed	60 RPM
Die Head	Accumulator capacity	45L
	Heating Load	45kw
	Max. parison weight	33kg
Clamping Unit	Clamping Platen Size	2600mm
	Max Mould Size	1600x1900mm
	Clamping Force	800KN
Hydraulic System	Hydraulic Drive Motor (Main)	42kw
	Hydraulic Drive Motor (Parison Control)	7.5kw
	Oil Tank Capacity	1000L
Machine Weight		28 Ton
Dimension	L x W x H	11mx4.5mx6.2m
Total Power		260kw
Average Power Consumption		85kw

Detailed Photos

Machine Parts
Name: Plastic Cone/Traffic Drum Blow Molding Machine
Brand: YANKANG
Original: CHINA
Using a more efficient and energy- saving IKV screw makes the plasticizing capacity about 1.5 times faster than the normal screw.
Adopt servo motor to control the hydraulic system,saving a lot of energy.The technology of Die Head is same with Germany.
Adopt the servo pump and induction heaters, more energy efficient. Super high cost performance characteristics make our blow molding machine have broad market prospects, make our blow molding machine more diversified.
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service
Special Design-Customized Service
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.


After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

Sales Network
Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 60 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.

Company Strength






FAQ
Q1: How Long is the warranty on the machine?
A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary machinery?
A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.
Q3: How about quality control in your factory?
A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water, electrical, machine layout in the factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers as well.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.
Q7: Mold trial will be available in the Yankang factory?
A7: Yes, the customer can send the mold to the Yankang factory and test it.
Q8: Do you provide any spare parts with the machine?
A8: Yes, Yankang will provide one set of standard spare parts to customers.

---
