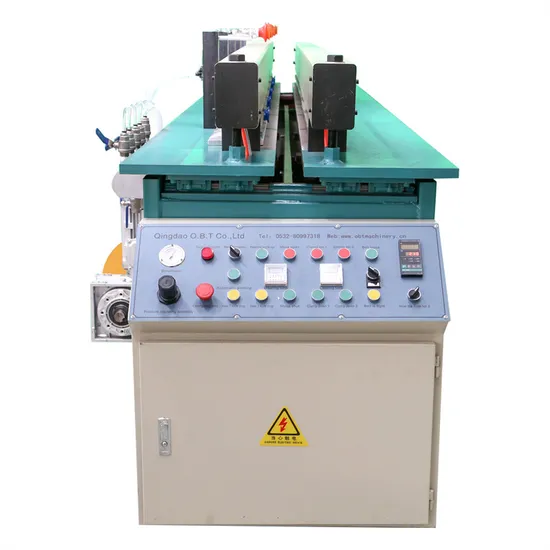

High Frequency PE PP Plastic Sheet PP Welding Machine 90 Angle Welding China Factory

US$10,000.00-14,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
OBT-3000-90
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Plastic
Type
Beading Machine
Transport Package
Wooden Box
Specification
3320*1860*1890
Trademark
OBT
Origin
China
HS Code
85158090
Production Capacity
5000PCS Per Year

Product Description

Model OBT-PH2000-90 OBT-PH3000-90 OBT-PH4000-90 OBT-PH5000-90 OBT-PH6000-90
plate thickness(mm) 3-30mm 3-30mm 3-30mm 3-30mm 3-30mm
welding effective length(mm) 2000 3000 4000 5000 6000
Minimum diameter(mm) 380 400 450 550 550
Gas source pressure(kg.f/cm2) 4to8 4to8 6to8 6to8 6to8
Energy source(M fand/min) 0.0032 0.0052 0.0062 0.0068 0.0075
Rated voltage(V) 380 380 380 380 380
Heating method whole heating whole heating whole heating whole heating whole heating
Heating power 4KW 6KW 8KW 10KW 12KW
Winding motor power 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW
Tensile strength of welding >=95% >=995% >=995% >=995% >=995%
Dimensions(mm) 2850*1200*1200 3800*1200*1200 4850*1200*1200 5850*1200*1200 6850*1200*1200
Welding 90 angle yes yes yes yes yes
Control system: Press-button control or touch screen control elected.
Material of heater:imported aluminum heater
Suitable for material:PP, PE, HDPE, PVDF, PVC, PPN
Application: Plating equipment, environmental equipment, chemical containers, sewage treating pipe, ventilation systems and so on.
