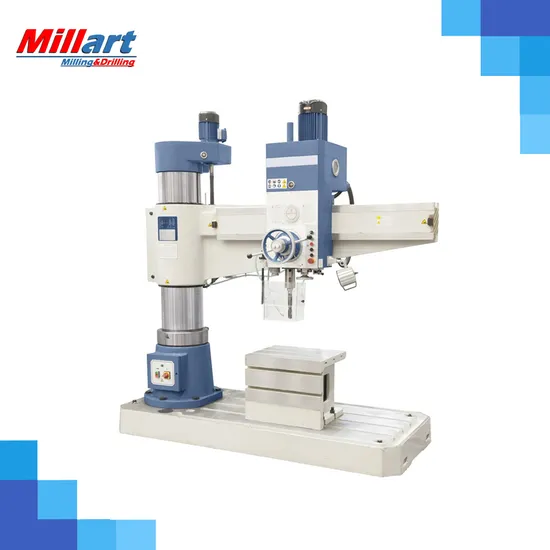

Hydraulic Radial Driling Machine Z3063*20A/Heavy Duty Metal Radial Drilling Machine

Product Description

Feature :
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise.

Technical parameter :
Technical parameter :

Specification	Units	Z3063×20A
Max. drilling diameter	mm	63
Column diameter	mm	450
Distance from spindle nose to table	mm	400-1600
Distance from spindle axis to column	mm	450-2050
Spindle travel	mm	400
Spindle taper	Morse	MT5
Range of spindle speeds	r/min	20-1600
Number of spindle speeds	step	16
Range of spindle feeds	mm/r	0.04-3.20
Number of spindle feeds	step	16
Work table dimensions	mm	950x630x500
Base dimensions	mm	2900x1250x250
Spindle motor power	kw	5.5
Elevator motor power	kw	2.2
Machine weight	kg	6800

Sandard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
