25m3 35m3 50m3 75m3 Foundation-Free Concrete Mixing Bathing Plant Factory Price

Product Description

Product Parameters

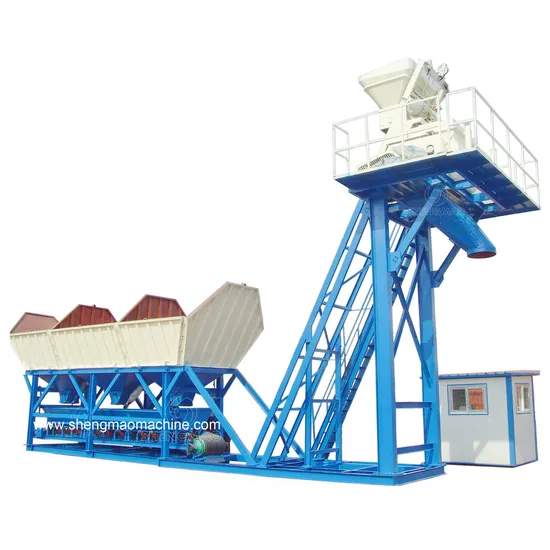

Foundation-free concrete batching plant
Model	FHZS25	FHZS35	FHZS50	FHZS75
Production Capacity (m3/h)	25	35	50	75
Concrete Mxier	JS500	JS750	JS1000	JS1500
Aggregate Feeding Mode	Skip Hoist	Skip Hoist	Skip Hoist	Skip Hoist
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Max. Aggregate Size (mm)	60/80	60/80	60/80	60/80
Discharging Height (m)	3.8	3.8	4.1	4.1
Aggregate Weighing Accuracy(%)	±2	±2	±2	±2
Cement Weighing Accuracy(%)	±1	±1	±1	±1
Water&Additive Weighing Accuracy(%)	±1	±1	±1	±1
Total Weight(T)	10	13.5	18.5	25
Total Power (kw)	65	75	100	110
Control System	Panel	Computer	Computer	Computer

Installation Instructions


The detailed assembly pictures of aggregate batching machine.
This aggregate batcher is equipped with three bins and uses belt weighing system.


Installation pictures of cement silo, it already finished to build the foundation before installation.
For the cement silo, there are 50~2000t for choice


Belt conveyor & Control room
And the pictures of the fully automatical control system and monitors.
Our Projects
Pre-sale Service 1 Answering customers' questions, helping customers choose the most suitable machines
2.Making design drawings as per customers' requirements
3. Providing quotations
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality
2. Regularly updating production progress to clients
3. After the production is completed pre-assembly and test running will be carried out to make sure our machine works well
4. Proper packing to minimize the risk that the machines are damaged during transportation; 5. Foundation drawing will be provided for clients to make the foundation in advance
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply
5. Job site visiting every year

---
