Good Corrosion Resistance High-Pressure Equipment Single-Arm Low-Temperature Chemical Bottom Unloading Arm with Swivel Joint

US$20,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Certification
ISO9001, QS, TUV
Type
Single-Arm, Double-Arm
Product Service
Petroleum Product, Gasoline, Diesel, and Chemical
Pipeline Material
CS, Ss, Low-Temp. CS, Lined with PTFE.
Envelope Range
Customized to User Needs
Seal
Viton, PTFE
Nominal Diameter
DN100
Design Pressure
-0.06~10MPa
Design Temp.
- 196 ~ + 200°c
Tanker Connection
API Coupler
Trademark
HUADE
Origin
Jiangsu, China
HS Code
8428909090
Production Capacity
200 Sets/Year

Product Description

Product Description Product Description:
The bottom loading arms are applied to load or unload various oil products on road/railway tankers with bottom manifolds.
Especially suitable for loading and unloading oil products on occasions with high environmental protection requirements.Main Features:
Steel and aluminum alloy materials are used to reduce the weight and improve the ease of operation.
Upper designed outboard arm increases the ground activity space and facilitates the operation of personnel.
Sumerged loading, reduce oil volatilization.
Vapor return connection, to achieve zero emission on site.
Dry coupler connection, to achieve no leakage on site. Product Parameters Main Data:
Item Data
Nominal Diameter DN100
Tanker Connection API Coupler
Design Temp. - 196 ~ + 200°C
Diameters 2″ up to 6″
Pipeline Material Carbon Steel, Stainless Steel, Low-Temperature Steel, Lined with PTFE
,etc.
Product Service Petroleum Product, Gasoline, Diesel, and Chemical
Structural diagram:

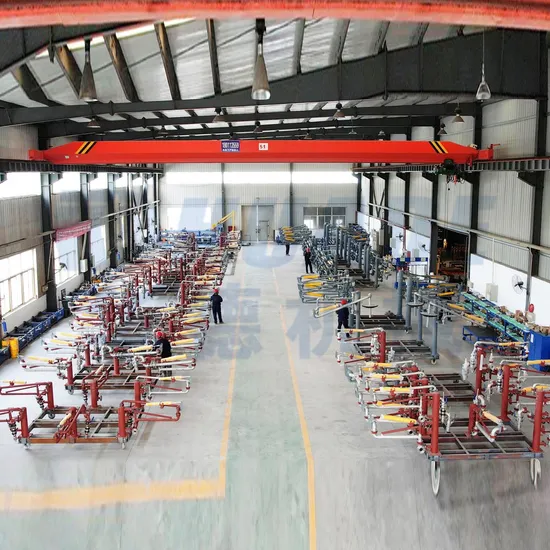

Our Advantages Company Profile Lianyungang HUADE Petrochemical Machinery Co., Ltd. is a leading manufacturer for loading arms, jetty and petrochemical equipment in China. Our predecessor, Lianyungang Petrochemical Machinery Plant, was the first Chinese company to cooperate with Connex GmbH in 1989 and imported German loading arm technologies to China, made significant contributions to the development of the industry in China. We specialize in the design, manufacturing and supply of land loading arm, marine loading arm, floating suction unit, loading skids, gangways, quick release hook, folding stairs, standard filing platform, etc.Currently, we have a factory area of more than 12 acres, R&D building of 3, 000 m2, workshop area of 20, 000 m2, more than 120 sets of advanced manufacturing and testing equipment, and a number of invention patents, utility model patents and software Copyrights. We have got the production license of special equipment for the manufacturing of pressure pipeline components, certificates of ISO9001/ISO14001/ISO4500 systems, and been authorized as National High-Tech Enterprise.By far, we have established extensive cooperation with CNPC, SINOPEC, CNOOC, CNAF, CNCEC, MCC, COFCO, CSSC, Shell, BASF, Akzo Nobel, Ashland and etc, our products have also been exported to Germany, UK, Belgium, Singapore, South Korea, India, Vietnam, Indonesia, Thailand, Mozambique, and many other countries.We will always be customer-oriented, and persist in supplying the most cost-effective systematic solutions and creating values for customers through our continuous R&D, innovation and upgrade in technology, process and quality, aiming for win-win and long-term cooperations.
Detailed Photos
Certifications
FAQ 1.Q: What is your production lead time?
A: It depends on the specific product, but generally, delivery can be made within 30-60 days.
2.Q: What payment terms do you offer?
A: We typically offer payment terms of 30% deposit and 70% before shipment, but this can be negotiated based on the order details.
3.Q: Can you apply the customer's brand to the product?
A: Certainly, we can do that.
4.Q: How do you ensure the quality of your products?
A: We have a strict quality control process in place, including inspections at every stage of production, to ensure the highest quality standards.
5.Q: Can you provide documentation and certifications for your products?
A: Yes, we can provide all necessary documentation and certifications, including material certificates, inspection reports, and compliance with industry standards.6.Q:Hong long is your warranty?
A:12 months from commissioning or 18 months from delivery, whichever comes first.
